Description
FEATURES
Standard Features

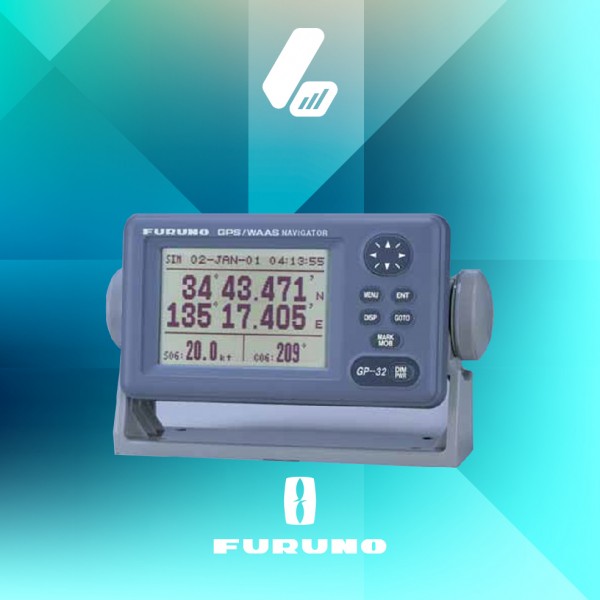

- 12 Channel, Parallel Tracking GPS Receiver with WAAS technology, DGPS Ready
- Up to 900 Knot Tracking Velocity
- 20 Second Warm Start Acquisition
- 1-3M Accuracy (95% of the time with WAAS on and SA off)
- 4.5 Inch Diagonal Monochrome High Contrast Silver Bright LCD Screen
- Waypoint and Route Data Transfer Via PC to another GP32
- 5 Display Modes available
1. Plotter – 14 Plot Scales from 0.2 – 320 N.M.
2. NavData – Position Indication in Lat./Long or Loran-C TD’s
3. Steering – Graphic Vessel Course, Position and Speed Information
4. Highway – 8 Range Scales from 0.2 – 16 N.M.
5. Analog or Digital Display Speedometer
6. Two user customizable displays - Man Overboard Key
- Waypoint entry by Loran-C TD’s (Highway Mode)
- Alarms for Arrival, XTE, Anchor Watch and High/Low Speed Points
- Memory Capacity: 1000 Points of Vessel Track, 999 Points for Waypoints
and Marks, and 50 Routes comprised of up to 30 Waypoints - Waypoint Comments of up to 16 Characters
- Event Marks Entered using one of Nine Symbols
- 2 Data Ports for both RS422 and RS232
- Feed nav data to radar, chart plotter, autopilot or sounder through NMEA0183 port
- Upload/Download waypoints and routes directly from NavNet display
- Built in Simulator for Showroom Display and Training
Power Requirements
- 12 or 24 VDC, 3 Watts
Shipping Information:
- 5 lbs., 1 Carton, 15″ x 10″ x 7″
Others
-
Display Size: 4.5 inches
-
Display Type: Mono LCD
-
Power Use: 12 VDC or 24 VDC
-
Receiver Type: WAAS or GPS
